Cement Industry

Improve Cement Plant Efficiency with Proven Airlock & Slide Gate Technology

Plattco valves and slide gates are engineered to eliminate dust leakage and reduce downtime in demanding cement plant environments.

Contact Our Engineer Team

Cement Industry Applications Plattco Solves

  • Hot clinker dust cyclones
  • Kiln/raw mill baghouse - mechanical and pneumatic conveying
  • Clinker conveyor system isolation
  • Clinker silo discharge isolation
  • Finish grinding circuit dust collectors gravity flap gates
  • Finish cement airslide shut off
  • Finish cement pneumatic transfer – 60 TPH and below
  • Finish cement pneumatic line diverters
  • Finish cement silo discharge

Additive Bins / Homogenization Silos

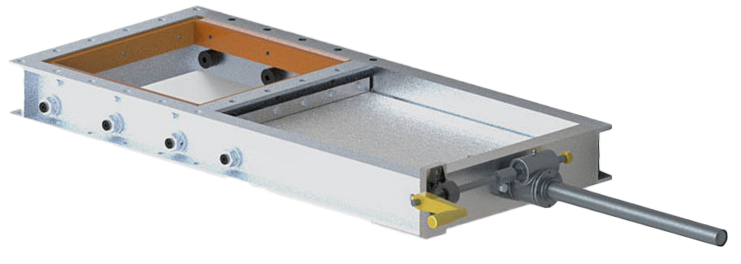

Product: MT Slidegate valve

  • Purpose is Silo discharge isolation
  • Atmospheric pressure
  • Ambient temperature
  • Heavy head load above valve
  • Custom sizes built to fit binoutlet dimensions
  • Customers choose plattco for heavyduty design and ease of actuation open and closed
  • Typically taking the place of a pingate – very difficult to install and remove pins
Contact a sales contactLearn more about MT Slidegate

Raw Mill Feed Valve

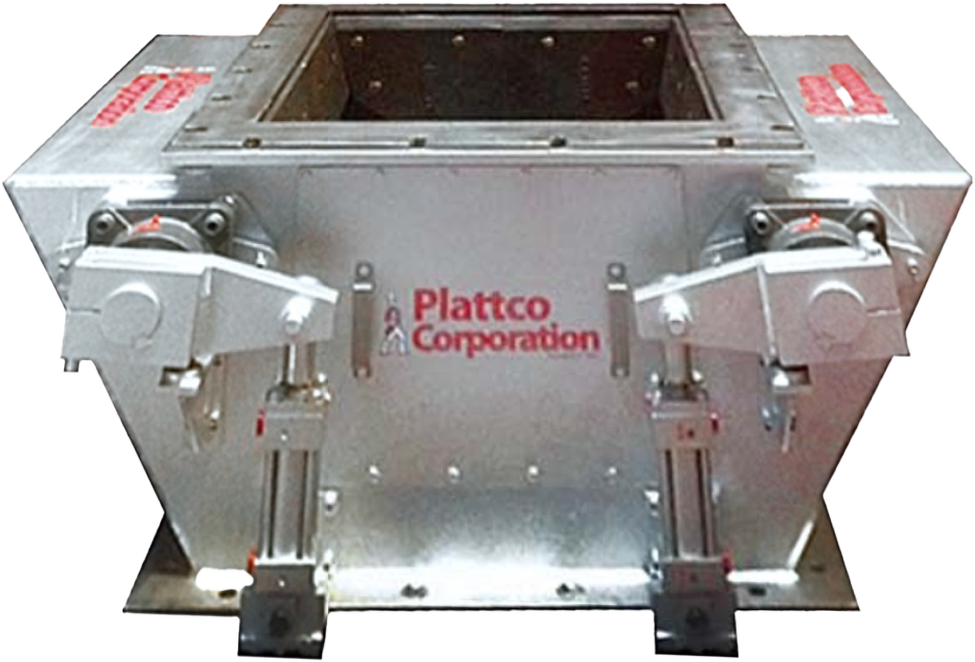

New Product in Development

  • Raw mill inlet airlock valve
  • Less than 1 PSI pressuredifferential
  • Up to 700 degrees F operatingtemperature
  • Flow rates around 350tph with largeparticle sizes of around 4” and lower
  • Purpose is to provide an airlockfeed to the mill inlet – limiting the amount of cold fresh air allowed to enterthe mill, increasing mill temperature and efficiency
  • 350TPH valve feedrate, handling rawfeed material up to 4” size
  • Competition are large custom builtrotary valves and triple gate valves which don’t seal well and cost the planthundreds of thousands a year in maintenance
Contact a sales contact

Raw Meal Pneumatic Line Diverter

Product: HP Slidegate

  • Pneumatic line diverter valve tocontrol flow of raw meal to different destinations
  • Temperature 200F and below
  • Pressure up to 30PSI
  • Installation orientation iscritical to valve function
  • Purpose is to seal off pipeline tocontrol direction of material flow
  • Competition are SK type divertervalves and other gate valve diverters which are not as reliable or maintenancefriendly
Contact a sales contactLearn more about HP Slidegate

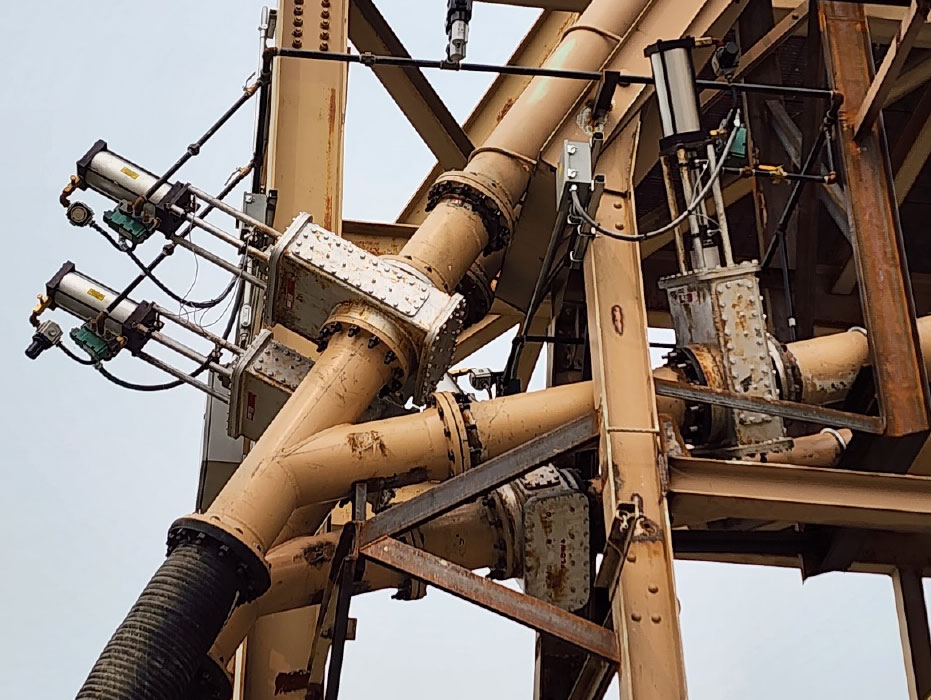

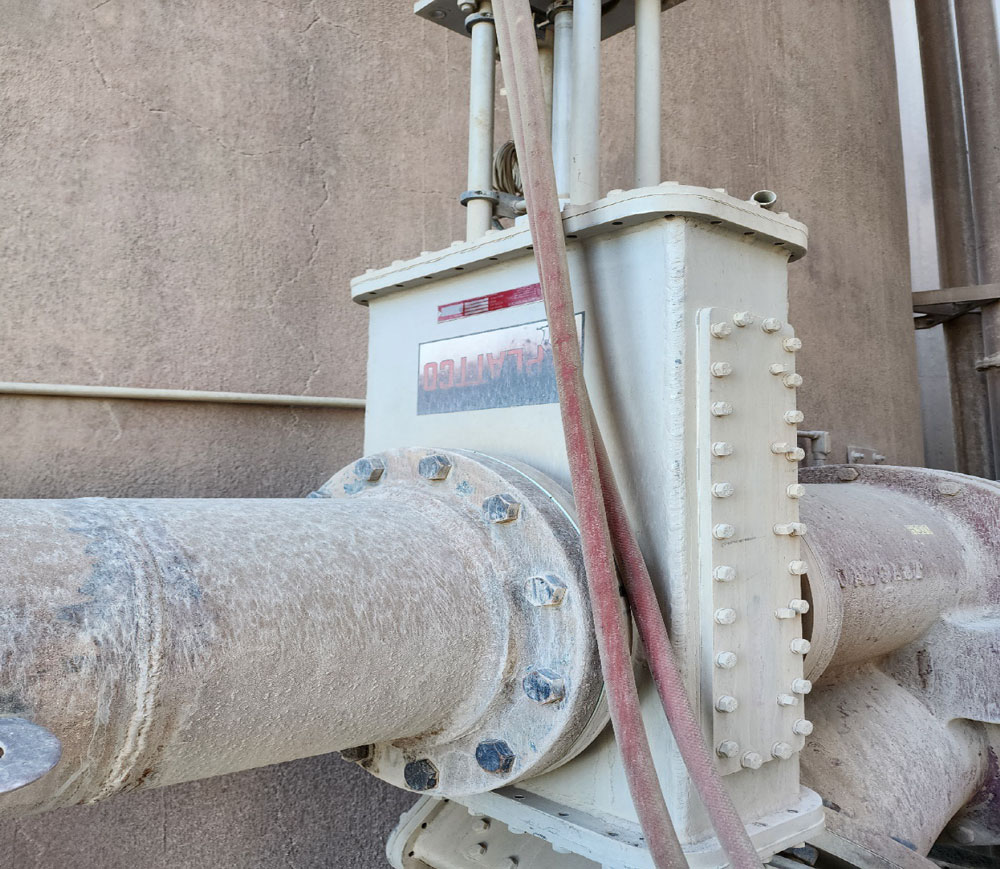

PICTURE: HP gatesplaced on the end of the SK style diverter valve acting as the Wye pipe.

Alternative Fuel Feed Airlock and Gate

Products: Double Flap Valve & MT Slidegate

  • Double flap valve is used as the airlock feeder into the calciner. MT slidegate is used as the isolation device to prevent backflow of hot calciner gases
  • Competitive airlocks and gatesstruggle to handle the materials being fed due to irregular particle sizes andlight densities
  • Mt Slidegate isolation valve isapplied separately from dfv when an airlock change is not requested
  • Pressure normally less the 1 PSIvacuum, upset condition could see 1 PSI positive pressure
  • Temperatures for upset conditions1800F for up to 36 hours
Contact a sales contactLearn more Our Double Flap ValvesLearn more about MT Slidegate

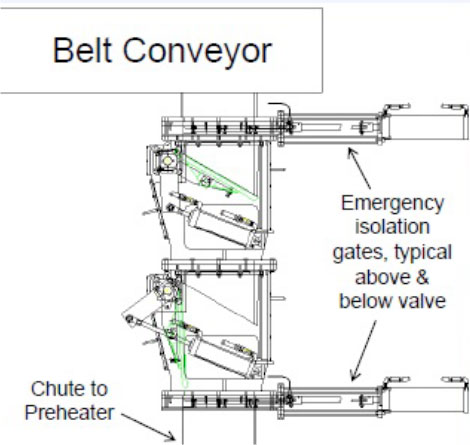

DIAGRAM: Plattco has a specific alternative fuelisolation gate valve design which has been applied in conjunction with many different typesof fuel feed systems

Coal Mill Feed Airlock Valve

Product: Double Flap Valve

  • Coal mill inlet airlock valve
  • Purpose is to provide an airlockfeed to the mill inlet – limiting the amount of cold fresh air allowed to enterthe mill, increasing mill temperature and efficiency
  • Temperature below 400F
  • Pressure less than 1 psi vacuum
  • Competition are large custom builtrotary valves and triple gate valves which don’t seal well and cost the planthundreds of thousands a year in maintenance
Contact a sales contactLearn more about our Double Flap Valves

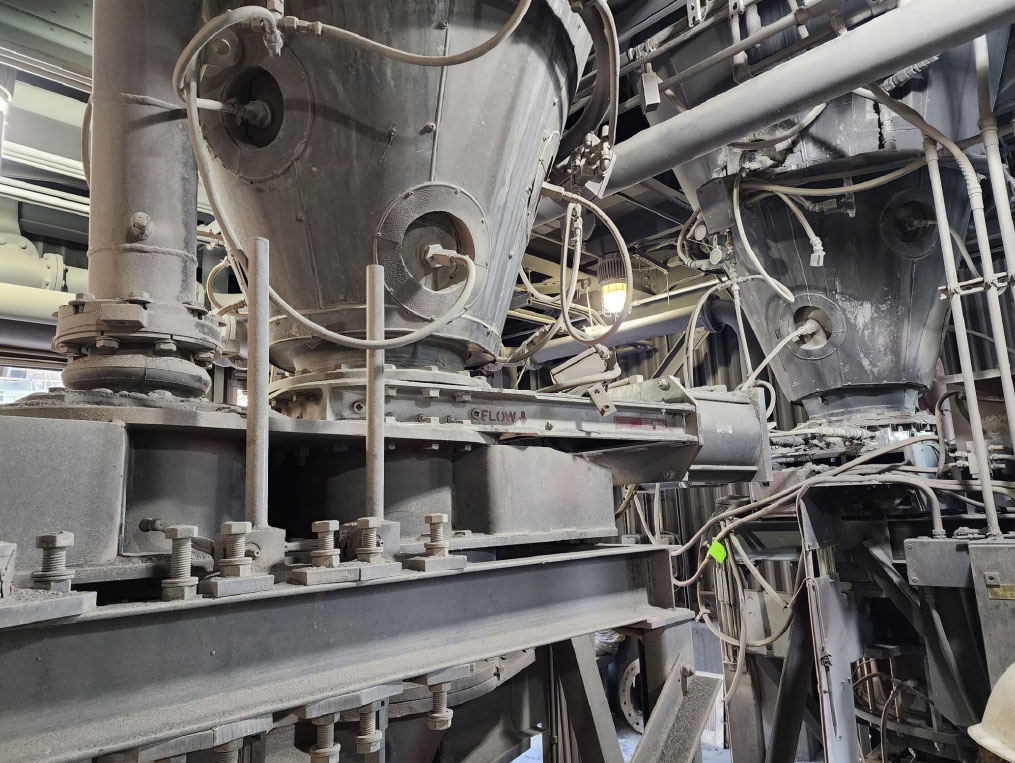

PHOTO: H-series 16”, 18” and 24” valves typically applied to this application due to flow rates required.

Coal Mill Baghouse / Dust Transport

Product: Double Flap Valve

  • Coal mill baghouse dischargeairlock valv
  • Purpose is to provide an airlock tothe baghouse discharge
  • Common application to feedpneumatic conveying system to transport coal dust
  • Temperature below 200f
  • Conveying system pressures up to 30psi in pneumatic conveying applications
  • Competition are rotary valves andsmall screw pumps – high cost of operation and maintenance
Contact a sales contactLearn more about our Double Flap Valves

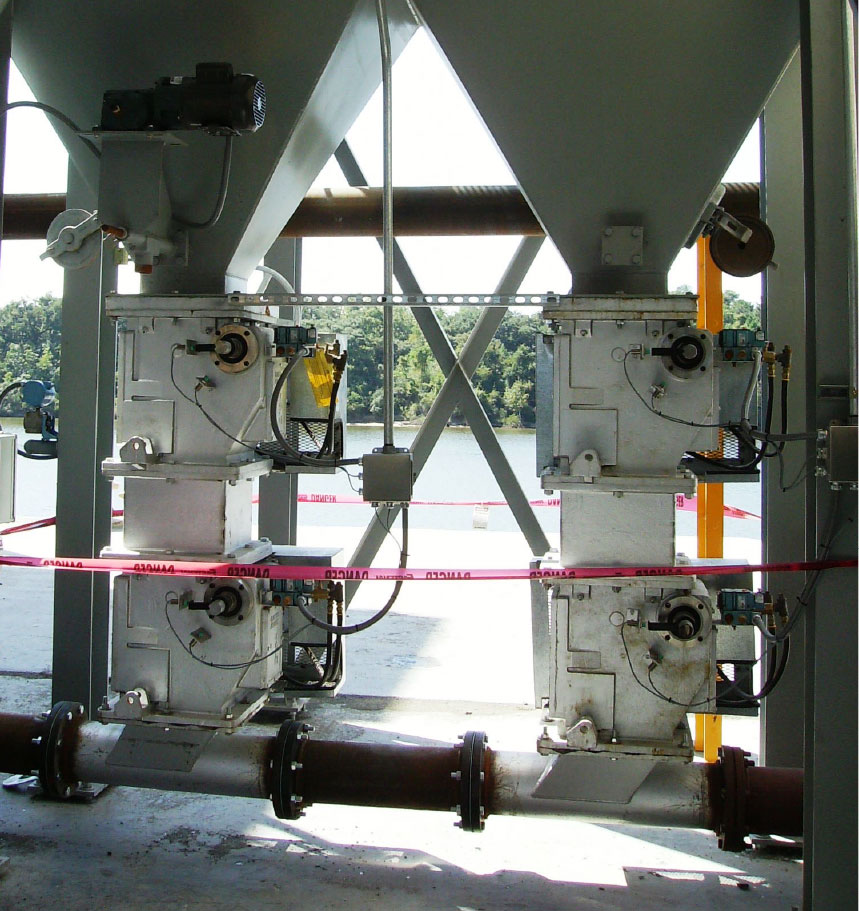

PHOTO: Plattco Model H-1295 handling pulverized coal dust.  This valve feeds coal into a 6” pneumatic conveying line to blow material to intermediate storage silos.

Pfister Feeder Isolation

Product: MT Slidegate

  • Pfister feeder isolation gate
  • Purpose is to shut off coal flow torotary feeder above the Pfister injector
  • Temperature less than 200F
  • Pressure below is Atmospheric
  • Competition are track “wafer” styleslidegate valves which jam open or closed so cannot operate as isolation valveswhen needed
Contact a sales contactLearn more about MT Slidegate

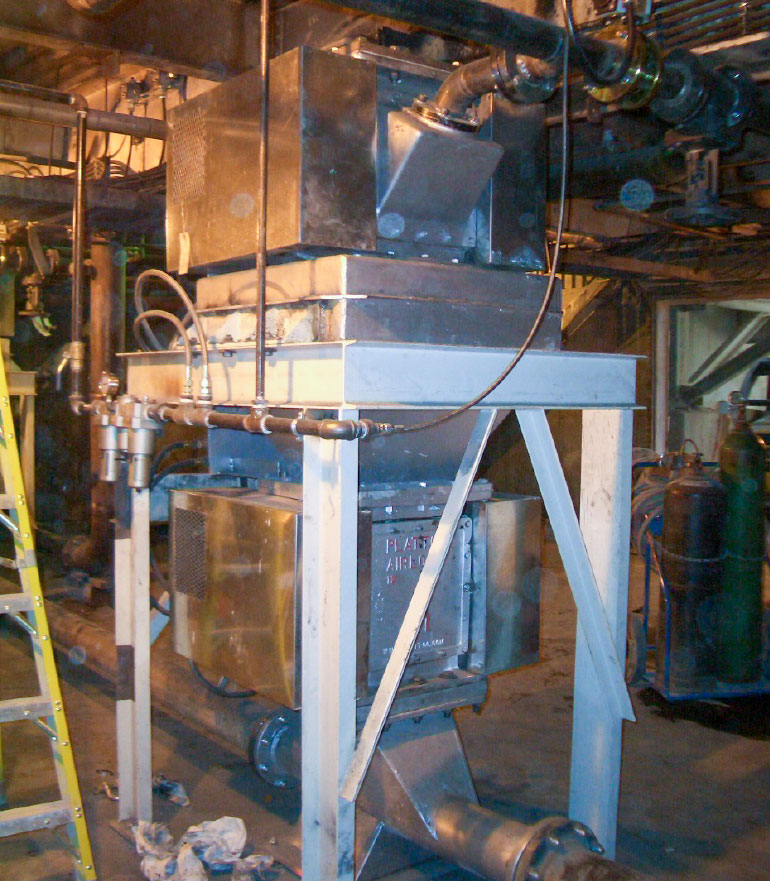

PHOTO: MT-Series slidegate valve on floor 1 to reliably isolate coal feed to Pfister feed system

Coal Injection Line Isolation Gate

Product: HP Slidegate

  • Coal injection line isolation gatefor coal injection nozzle
  • Purpose is safety shutoff for coalinjection system
  • Competition are track “wafer” styleslidegate valves which jam open or closed so cannot operate as isolation valveswhen needed
Contact a sales contactLearn more about HP Slidegate

Coal Mill Rejects

Product: Double Flap Valve OR  Slidegate Valve

  • Purpose is to act as an airlock onthe coal mill rejects discharge chute
  • Temperature less than 400F
  • Vacuum Less than 1 PSI
  • Challenging application to handlestones and other tramp material
Contact a sales contactLearn more about MT SlidegateLearn more about our Double Flap Valves
LEFT PHOTO: S8-series double flap valve handling coalmill rejects.
RIGHT PHOTO: MT-series slidegate installed.

Clinker Cooler Under Grate (Old Style)

Product: Double Flap Valve

  • Purpose is to act as an airlock on the under grate hoppers of the clinker cooler
  • Temperature up to 700F
  • Vacuum or positive pressure near 1 PSI
  • Challenging application to handle extremely abrasive material on a 24/7 continuous basis
Contact a sales contactLearn more about our Double Flap Valves

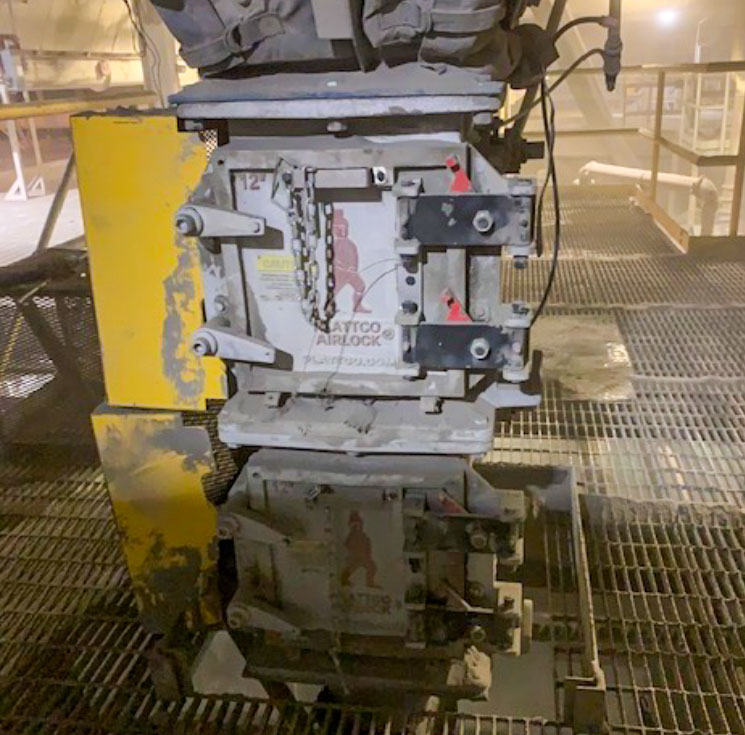

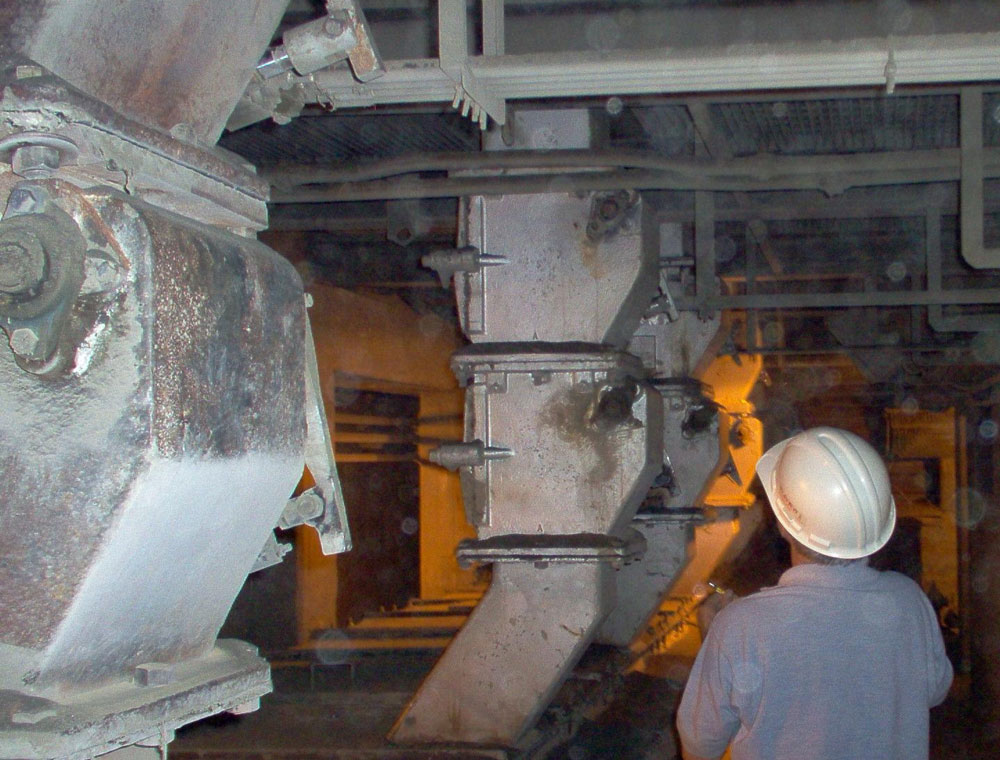

PHOTO: H-series valves are typical in thisapplication, though some coolers use singleflap S8-series valves

Hot Clinker Dust Cyclones

Product: Double Flap Valve

  • Purpose is to act as an airlockunder the cyclone discharge
  • Temperature up to 700F
  • Vacuum pressure near 1 PSI
  • Challenging application to handleextremely abrasive material on a  24/7continuous basis
Contact a sales contactLearn more about our Double Flap Valves

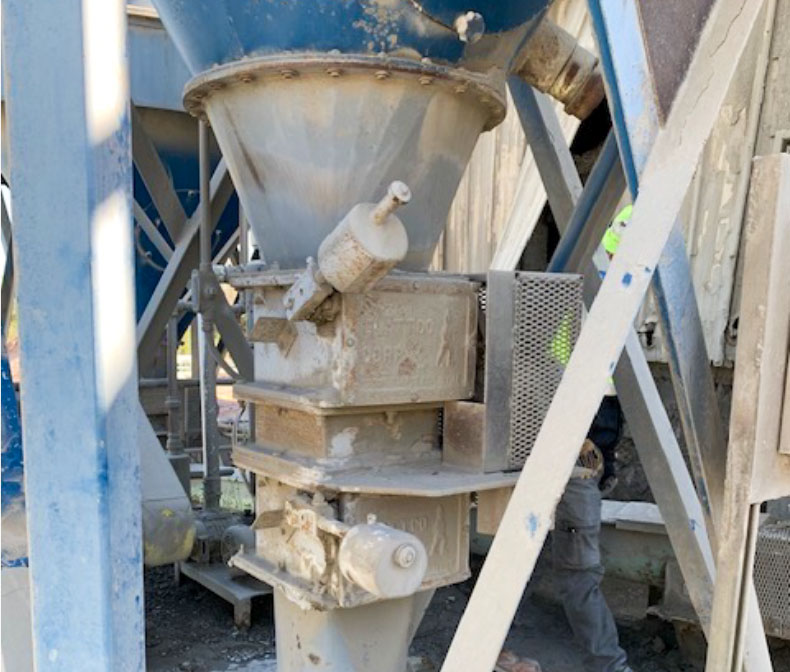

PHOTO: PCV-series under clinker dust cyclone.

Kiln Baghouse / Raw Mill Baghouse

Product: Double Flap Valve

  • Purpose is to act as an airlockunder the baghouse
  • Temperature up to 400F
  • Mechanical or pneumatic conveyingsystem under valve to transport dust
  • Pneumatic transport – 15psitypical, mechanical transport – vacuum less than 1 PSI
  • Special cases utilize pneumaticconveying system with multiple pickup points
Contact a sales contactLearn more about our Double Flap Valves

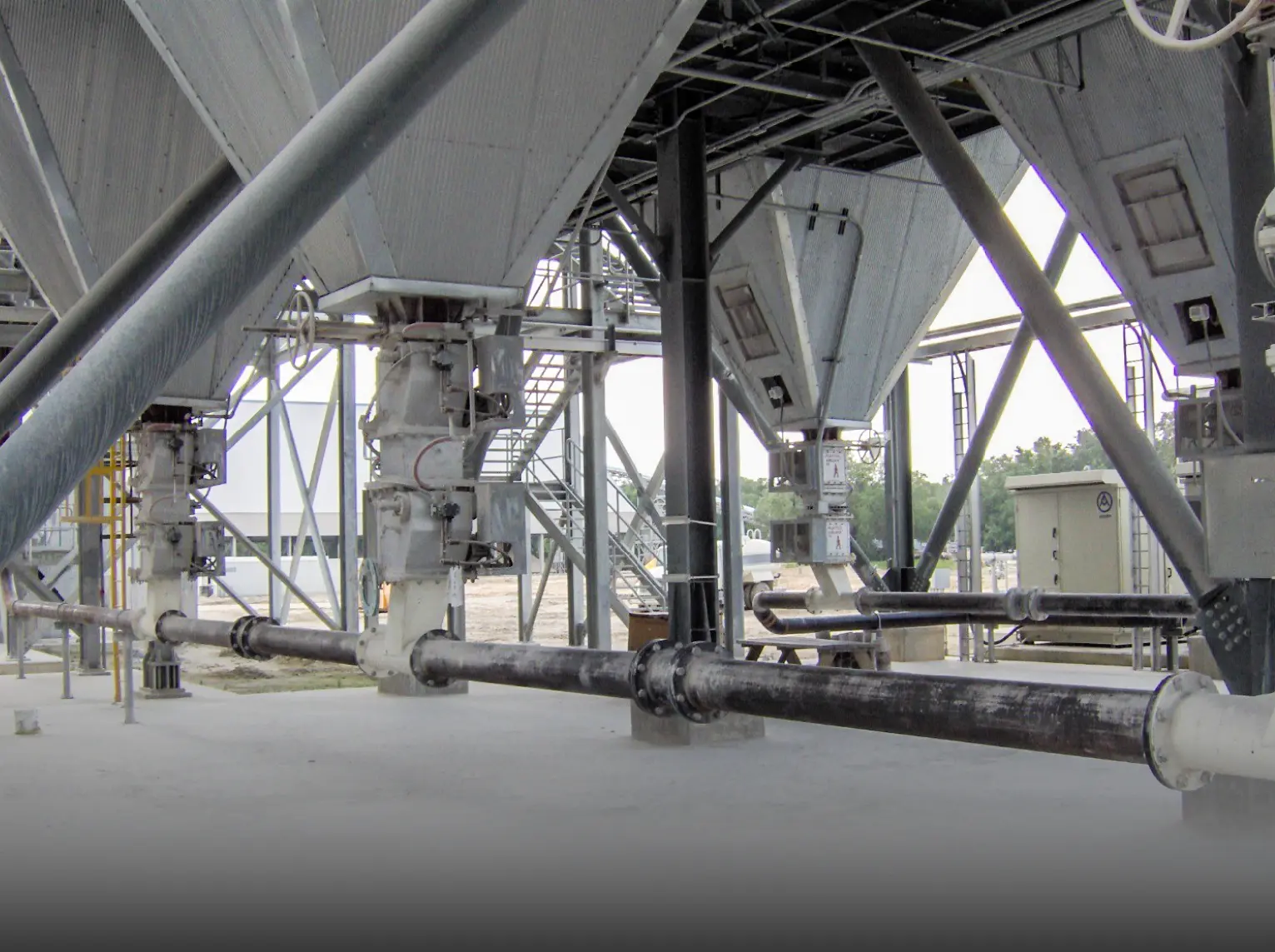

PHOTO: H-series valves feeding directly from thekiln baghouse discharge hoppers into a common pneumatic conveying line.  This design saves hundreds of thousands ofdollars in cost by lowering baghouse to the ground and eliminating mechanicalconveyors, catwalks, and structural steel.

Clinker Conveyor Isolation

Product: MT Slidegate

  • Purpose is to act as a materialshut off between clinker conveyor belts in the clinker transport system
  • Temperature 250F
  • Pressure ambient
  • Challenging application to handleextremely abrasive material – closing through clinker with a normal track styleslidegate valve is not possible.
Contact a sales contactLearn more about MT Slidegate

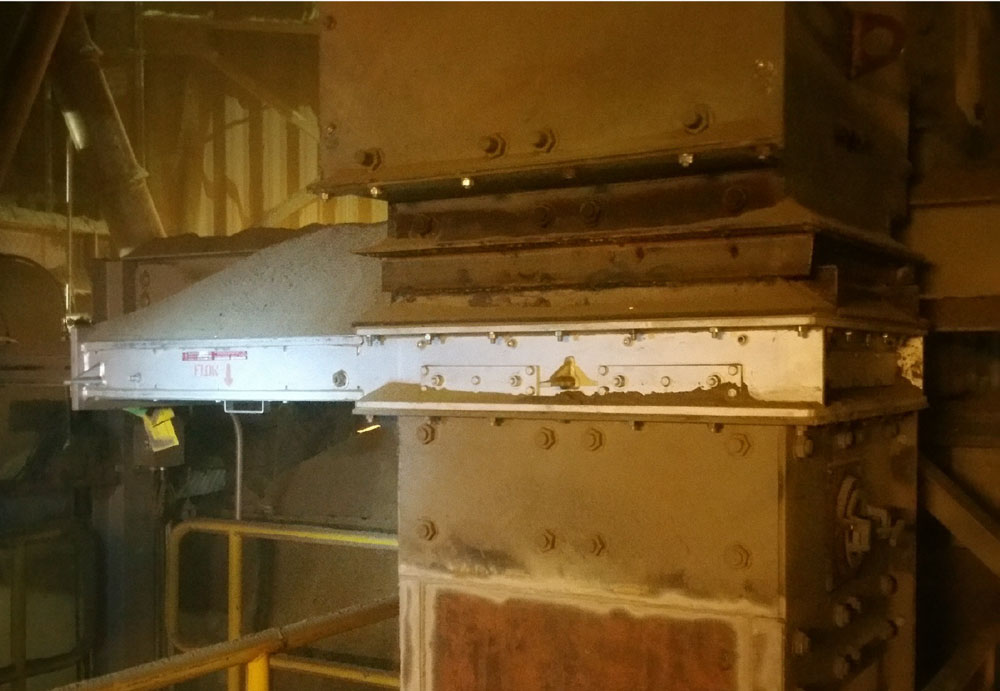

PHOTO: MT-series slidegate valve for clinkertransport system isolation point.

Clinker Silo Discharge

Product: Slidegate Valve

  • Purpose is to act as a material shutoff between clinker silo and transport system
  • Temperature 250F
  • Pressure ambient
  • Challenging application to handleextremely abrasive material – closing through clinker with a normal track styleslidegate valve is not possible.
Contact a sales contactLearn more About our Slidegates

Dust Collectors in Finish Grinding Circuit

Product: Double Flap Valve

  • Purpose is to act as an airlockvalve on the discharge of the dust collector
  • Temperature 250F
  • Pressure -25”WC
  • Simple application handlingabrasive and fine particle cement dust. Combination of nuisance dust collectors for pcv-series valve and otherlarger process dust collectors with single flap gravity valves
Contact a sales contactLearn more about our Double Flap Valves
PHOTO: H-series double flap valve with hinged camlock quick access cover on nuisance dust collector.

Finish Cement Air-Slide Ahutoff

Product: Slidegate Valve

  • Purpose is to act as a shutoffvalve in air-slides to divert material flow
  • Temperature 250F
  • Pressure -25”WC
  • Specific slidegate design to allowfor material shutoff and an air channel under the valve to allow air to passthrough to other sections of air-slide
Contact a sales contactLearn more About our Slidegates

Line Feeder for Finish Cement Pneumatic Transfer System (below 60TPH)

Product: H-SERIES Double Flap Valve

  • Purpose is to feed material at acontrolled rate into the pneumatic conveying line
  • Temperature 250F
  • Pressure – up to 30 PSI
  • Challenging application with highwear rates and high pressures.  Typicallytaking the place of a small screw pump feeder or rotary valve
Contact a sales contactLearn more About our H-SERIES VALVES
PHOTO: Plattco Model H-1295 double feed pointarrangement shown here to increase feed rates into the pneumatic conveying lineby alternating cycling between each double flap valve for a combined rate of 12cycles per minute.

Diverter Valve for Finish Cement Pneumatic Conveying Lines

Product: HP Slidegate

  • Purpose is to act as a shutoffvalve in the pneumatic conveying line
  • Temperature 250F
  • Pressure – up to 30 PSI
  • Challenging application with highwear rates and high pressures – especially when diverter is installed close tocement pump
Contact a sales contactLearn more about HP Slidegate
PHOTO: HP-Series slidegate valves are used invarious arrangements to provide diverter isolation in cement pneumaticconveying system transport lines.

Finish Cement Silo / Dome Discharge

Product: MT Slidegate VALVE

  • Purpose is to act as a shutoffvalve under the silos
  • Temperature ambient
  • Pressure – up 5 PSI fluidizing pressure
  • High cycling rates for these valvesas they are used to discharge material regularly to fill trucks or shut offfeed airslides
Contact a sales contactLearn more about MT Slidegate

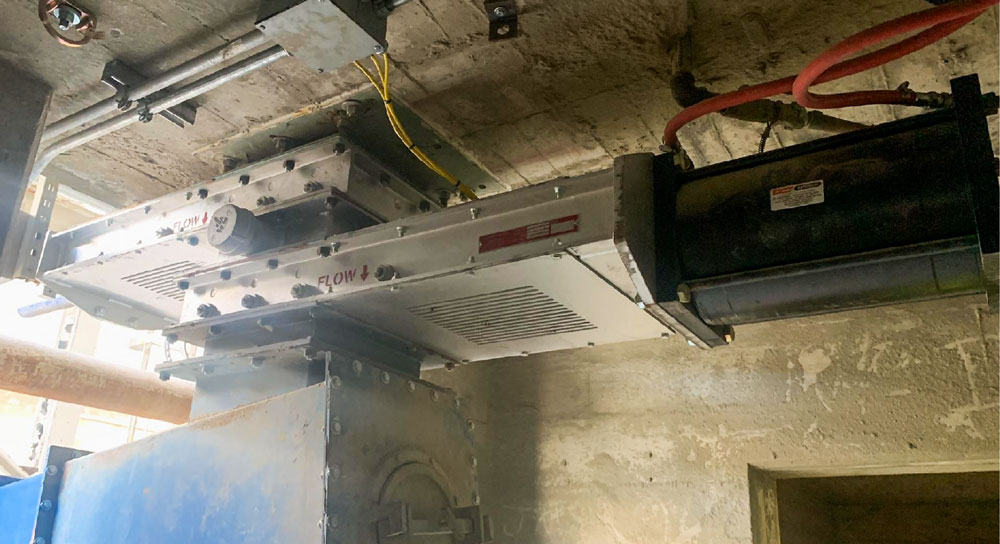

PHOTO: MT-Series gate under silo and feeding an airslide.
