High Cycling Roller Gates

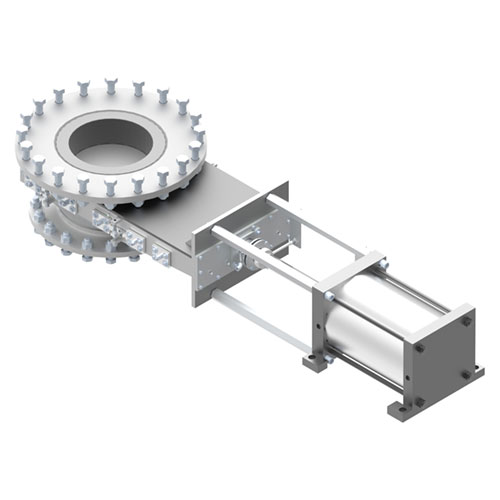

This is our high temperature slidegate valve designed to operate handling materials at temperatures of 1900F/1040C and beyond.  This valve is your only choice when it comes to the need for a reliable and safe material shut off when material temperatures are above 1000F/540C.  Customers have chosen this valve for process critical applications on roasters, smelters, furnaces, and boilers.

Companies around the world choose Plattco maintenance gates because they will:

  • Effectively and reliably close and seal against material
  • Perform in critical, demanding condition
  • Offer Convenient & Inexpensive Maintenance for decades of like-new operation

Operating Parameters:

  • Can be designed to operate up to 1900F/1040C
  • Maximum pressure capability of 5 PSI/.35 Bar
  • Can be used to handle materials with ranging in particle size from powders to lump

Excellence in Design:

  • Variety of sizes available from 4”inch/100 MM
  • Fabricated plate valve body design allows for the use of high temperature capable stainless steels and in some cases exotic super-materials to handle the material temperatures
  • The fabricated valve body allows the flexibility to customize the valve’s overall height and flange pattern to suit customer specific needs
  • Proprietary and unique floating seat insert allows the valve to handle red hot materials without the possibility of cracking the valve housing – even through thousands of thermal cycles
  • All design undergo rigorous finite element analysis to ensure the design intent does not compromise the performance of the valve
  • The sloped lower bonnet area prevents material from building up inside the valve’s bonnet
  • Support rollers are adjustable to allow for maximum flexibility to set up the valve to provide the best possible seal, even at these extreme temperatures
  • Gate support pins allow the gate to slide in the body without the possibility of material buildup jamming the actuation
  • In-line removable and replaceable rollers and/or pins, actuation, sliding blade (gate) and packing glands, quick and easy maintenance without pulling it out of line
  • Cylinder design offers capability of adding open / closed indicator switches
  • Variety of actuation available including pneumatic, electric, hydraulic, screw jack and hand-wheel
  • Multitude of available accessories including indicator switches, guards, control packages, and filter regulators

Let us help you determine what you need for your specific material handling system.

Contact us Today!

View Your Sales Territory ManagerCall: 800.352.1731EMAIL questions

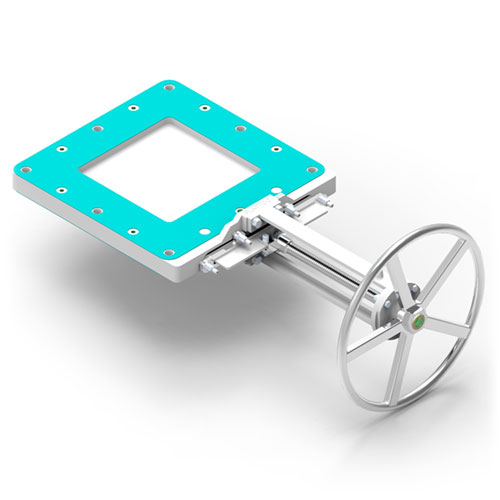

U-Series slide gate


This is Plattco's low-profile slidegate valve. It is commonly used as a maintenance gate above a Plattco double flap airlock valve. It is meant for low cycling applications where headroom is limited.

Learn More

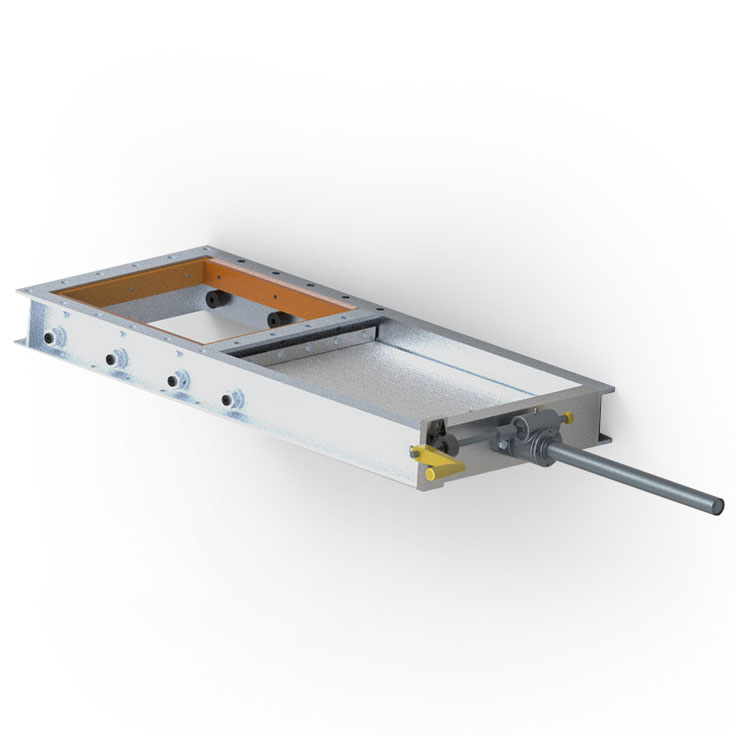

MT-Series slide gate


This is Plattco’s premium roller gate valve.  This valve can be customized to fit nearly any installation footprint and application requirement. It is commonly used for gravity flow applications that require a reliable gate that won’t break the bank.

Learn More

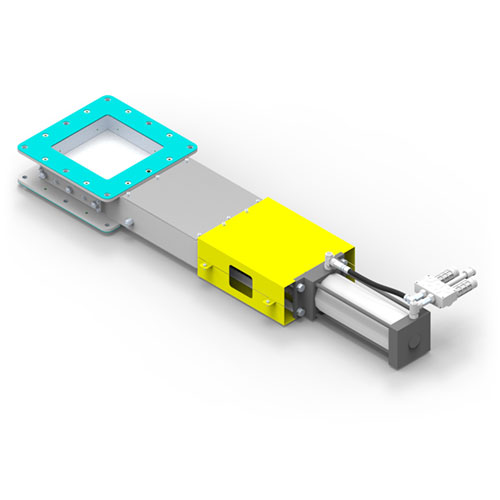

KT-Series slide gate


This Plattco’s most economical roller gate valve.  These valves are common in process critical applications – where operation of your plant depends on a reliable slidegate valve.

Learn More
HP-Series slide gate


A high performance and high sealing slide gate valve specially designed for the cement industry to function as a diverter valve in critical pneumatic transport systems. Ideal pressure or vacuum pneumatic conveying line shutoff valve.

Learn more
HT-Series slide gate


This is Plattco’s high temperature slidegate valve.  This valve is designed to operate handling materials at extreme temperatures.  Our proprietary design allows us to handle materials up to 1800F safely and reliably.

Learn More

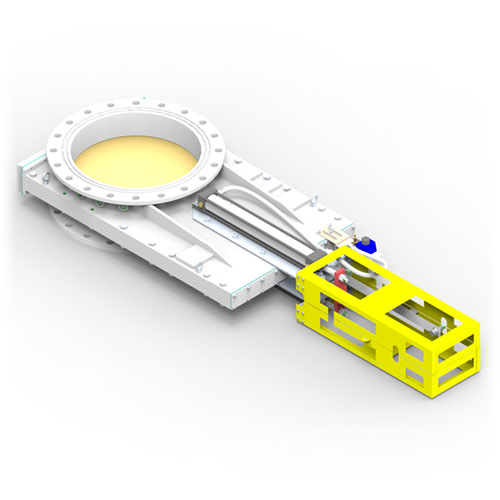

IS Series – This is Plattco’s coal isolation gate valve invented specifically to act as the main fuel shut off valve to fluid bed boilers.  Plattco invented the valve in the 1980s.

Learn More

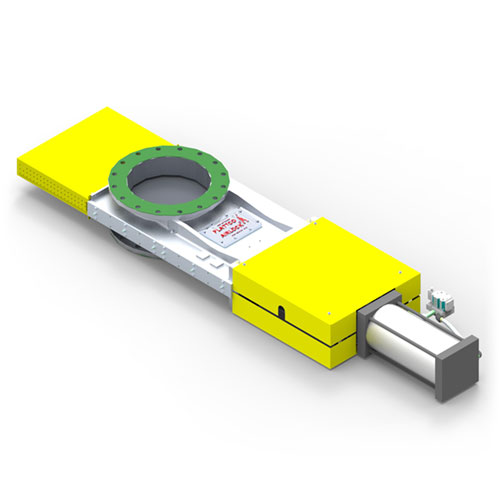

Goggle Series slide gate

Goggle Series

This Plattco’s dry scubber discharge gate valve invented specifically for the energy industry.  The unique design allows the valve to reliably operate as the discharge seal of a dry scrubber system.

Learn More

custom slide gates

Plattco’s engineering and design team are able to collaboratively engineer a solution to meet your dry material handling needs based on your unique combination of application details and headroom available.

Learn More

For a side-by-side comparison of our products, download our Complete Product Catalog.
